DECOUPLED STOCHASTIC MODEL AND SURVEY METHOD FOR EXTRAORDINARY LOAD
-
摘要:
临时性活荷载是建筑楼面活荷载的重要部分，但基于荷载单元的传统模型造成现场调查困难，样本匮乏导致临时性活荷载研究长期停滞不前。对此，研究提出了临时性活荷载的解耦随机模型，将活荷载解耦为数量和幅值两种独立随机变量，既可对不同临时性活荷载事件统一建模，也可对荷载的数量和幅值分别采样统计而大大方便了荷载调查。与解耦随机模型相配合，进一步研究了结合目标检测和多目标跟踪的机器视觉调查方法，利用泛在监控设施实现临时性活荷载的持续性调查。以常见人群聚集型临时性活荷载为例，阐述了机器视觉调查方法的实施过程，并通过实际场景下的调查实验验证了调查方法的有效性。解耦随机模型结合机器视觉调查方法为临时性活荷载大样本的获取以及楼面活荷载设计值的研究提供了可行的新方式。

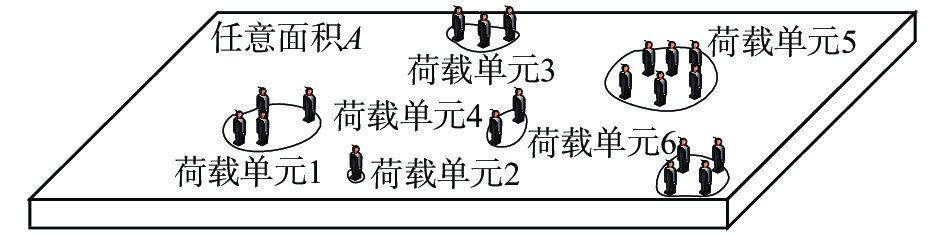

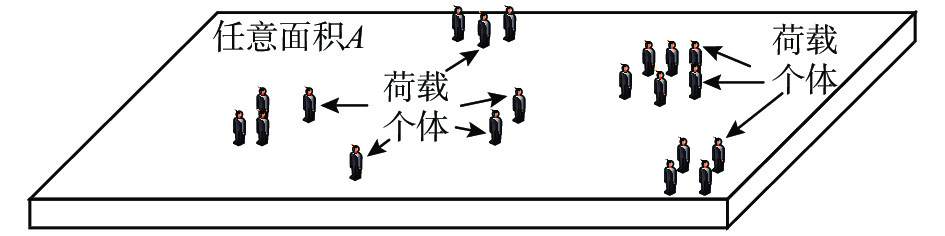

Abstract:Extraordinary load is an essential part of the live load on buildings. However, the traditional model based on load cells makes the field survey be difficult, and the lack of survey data has led to the long-term stagnation of extraordinary load studies. This study proposes a decoupled stochastic model for extraordinary load, which decouples extraordinary load into two independent random variables of load quantity and magnitude. The proposed model enables unified modeling of different extraordinary load events and simplifies the load investigation by conducting sample statistics separately. Based on the decoupled stochastic model, a machine vision survey method, combining object detection and multiple-object tracking, is further proposed to conduct extraordinary load surveys sustainably using widespread public surveillance facilities. Taking the extraordinary load of crowd gathering as an example, the implementation of the machine vision survey method is presented, and the effectiveness of the new survey method is verified by the survey experiment under actual scenes. The decoupled stochastic model combined with the machine vision survey method provides a feasible way to obtain large samples of extraordinary load and study the design value of floor live loads.
-
Keywords:
- extraordinary load /
- live load survey /
- live load /
- object detection /
- multiple-object tracking
-
-
![]()
图 6 人群头部检测数据集的示例图像与标注样本
Figure 6. Images and annotation samples of the crowd head detection dataset
![]()
图 8 拥挤情况下人群头部跟踪结果示例
Figure 8. Examples of crowd head tracking results under crowded condition
表 1 调查场景详细信息
Table 1 Details of survey scenes
场景 调查区域 区域面积/
m2摄像头
数量调查时长/
s场景1 教室 79 1 120 场景2 走廊 25 2 120 场景3 教室、走廊 247 4 120 场景4 教室、走廊、大厅、楼梯 633 6 120
下载: 导出CSV

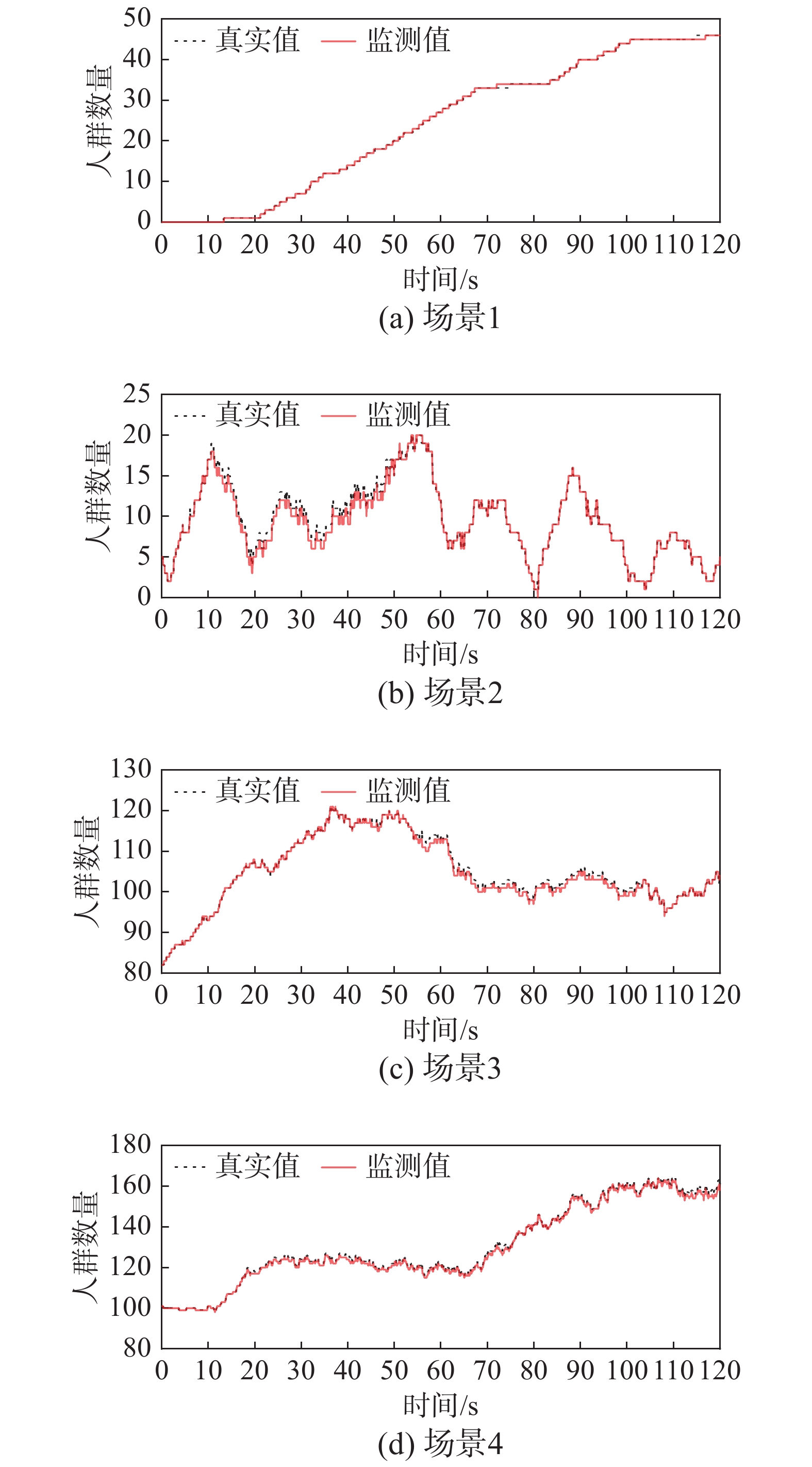

表 2 不同图像尺寸下机器视觉调查方法的评估指标
Table 2 Evaluation metrics for machine vision survey method at different image sizes
图像尺寸 均方根误差 最大值相对误差/(%) 调查时间/s 384 1.57 4.01 81.3 448 0.98 1.95 82.2 512 1.22 2.30 84.2 576 0.81 0.71 89.5 640 0.68 0.70 91.1 704 0.72 1.03 96.9 768 0.65 0.92 99.2
下载: 导出CSV
-
